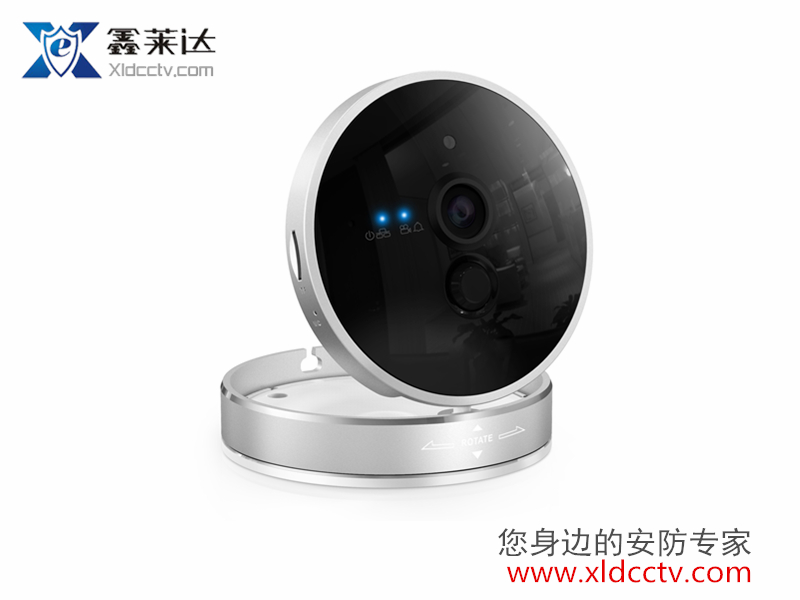

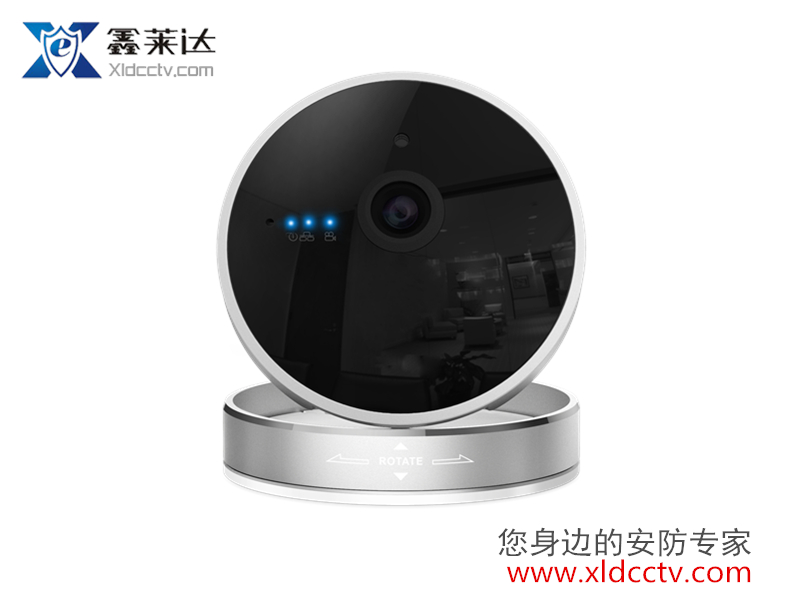

Smart Fire Eye D Model-XLD-NC8005D
Product overview
When the ambient temperature and humidity exceed the preset settings, the camera will automatically alarm and send information to your mobile phone. The upper and lower temperature limits can be set on the mobile APP.
●Unimaginable wireless smart alarm
Dual alarm detection, anti-theft tool with the best experience of wireless alarm push and WiFi learning code access technology, 64 alarm channels in 8 defense zones, door sensors, smoke sensors, and infrared probes can be easily accessed. PIR human body induction alarm and motion detection alarm, as long as someone enters the detection range, an alarm will be generated, and the corresponding alarm message and picture will be pushed to your mobile phone. No matter how cunning a thief is, there will be no way to hide.
●Unimaginable high-definition images
You can watch true 720P high-definition images on your mobile phone. The smoothness is far ahead in the industry. The P2P network penetration capability is 99.9%, and you can easily control it at any time in any corner of the world. It adopts the world's best high-definition hardware technology and P2P penetration technology.
●Unimaginable infrared night vision
The effect of infrared night vision is beyond your imagination. Even in no light environment, the image is still clear and you can see every detail. Using the latest infrared technology, it has high light intensity, low power consumption, good reliability, long life, wide irradiation range and long distance.
The image is clear, the color is pure, and the stunning night vision effect
●Unimaginable voice calls
Unique sound quality in the industry, without any noise. Adopts echo cancellation and noise suppression technology: two-way voice intercom, clear and smooth voice 3D Voice engine technology, comprehensively improves voice quality, and has echo cancellation and noise suppression technology.
●Unimaginable wireless WiFi access
WIFI setting is super simple and convenient. The mobile APP automatically generates a QR code, points it at the camera lens, and a ding-dong sound is heard in a few seconds to complete WiFi access. There is no need to plug in the network cable to directly control the wizard settings. This is the first in the industry and the operation is simple and fast. Shake the phone function: Just shake it easily to search for all the devices in the local area network and add them with one click, which is convenient and practical. The remote control wizard can also control the air conditioner and TV in your home, making it a good helper at home.
|
Product model |
||
|
Compression technology |
Operating system |
New optimized H.264 Baseline Profile compression algorithm |
|
Video |
Sensor |
HD 100MegapixelsCMOS sensor |
|
Kernel |
The latest Hi3518Echip |
|
|
Clarity |
720P high-definition image, resolution up to 1280x720, 100 million pixels |
|
|
Resolution |
720P(1280x720),VGA(640x360), QVGA(320x180) |
|
|
Frame rate |
1-30frames |
|
|
Minimum illumination |
Day mode :1.5 LUX, night vision mode:0LUX (infrared light on) |
|
|
Infrared distance |
Double filters automatically switch, 2 high-power ceramic infrared lamps, night vision5 meters |
|
|
Signal-to-noise ratio |
≥38dB |
|
|
CMOSPerformance |
Supports automatic white balance, automatic gain control, automatic backlight compensation |
|
|
Lens/Viewing angle |
||
|
System Features |
System Security |
Account and password secondary authority management |
|
Comes with dynamic IPDomain name system (free) |
No domain name required, supports dynamic IP, no need to apply for peanut shells, completely solves the problem of frequent disconnections, fast connection speed |
|
|
Mobile phone monitoring |
Supports millions of high-definition mobile phone viewing, dedicated Apple mobile phone software, Android software (iOS4.3, Android2.3 and above) |
|
|
Local storage |
Supports up to 128GBTF card style="color:#333333;font-family:Arial;font-size:9pt;"> |
|
|
Plug and play |
Adopting advanced Cloud-link P2P (plug and play) technology, the network penetration is as high as 99%, suitable for Various complex networks require only three steps to install: 1. Connect the power supply and plug in the Internet cable; 2. Install the mobile software; 3. View the monitoring screen |
|
|
Server cluster |
P2P Intelligent server clusters are distributed globally, ensuring the stable and efficient operation of home network rotating cameras |
|
|
Audio |
Coding standards |
G.711A |
|
Audio input |
1 channel built-in-38dBmicrophone |
|
|
Audio output |
Built-in two speakers(8Ω1w)` |
|
|
Video management |
Recording method |
Manual recording, scheduled recording, alarm recording |
|
Save video |
TF card (maximum support128G) |
|
|
Network |
Network interface |
10Mbps/100MbpsAdaptive/RJ45Interface |
Network Protocol |
TCP/IP,HTTP,TCP,UDP,SMTP, DHCP,DNS,DDNS,NTP,UPnP,P2Petc. |
|
|
Wireless |
WiFi 802.11b/g/nWireless Network |
|
|
Alarm |
Alarm input |
Learning wireless sensor alarm input |
|
Motion detection |
Support |
|
|
Alarm detection |
PIR alarm, temperature and humidity alarm, maximum 64 channels of wireless alarm sensors can be connected, support one-click deployment /disarm |
|
|
Alarm action1 |
Speaker alarm, can dial 5 mobile phones at the same time |
|
|
Alarm action2 |
Take pictures and send them E-mail |
|
|
System Requirements |
System configuration |
iOS4.3,Android2.3 and above |
|
Others |
Appearance material |
Cartoon robot/Engineering plastics |
|
Usage environment |
Indoor use |
|
|
Power consumption |
DC 5V 2A |
|
|
Operating temperature |
-10~50 °C |
|
|
Operating humidity |
95% RH |
|
|
Standard accessories |
Power Adapter Installation Baseplate Operation Guide |
|
|
Optional accessories |
Wireless door sensor remote control |
|
|
Installation method |
Rack mount or lay flat |
|
|
