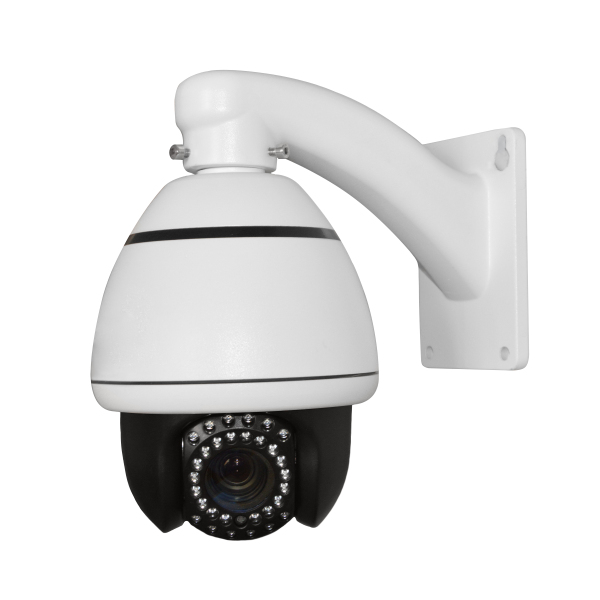

4-inch mini high-speed ball XLD-MR404NW-100H

Product model：XLD-MR404NW-100H Views：3 2026-08-12

Product overview

1. Using 10 times 1/2.8" SONY CMOS; 2. Horizontal 360° rotation, driven by precision stepper motor, running smoothly and positioning accurately; 3. The rotation speed depends on the zoom factor of the lens...

Get a solution quote 18922896702

1. Using 10 times 1/2.8" SONY CMOS;
2. Horizontal 360° rotation, driven by precision stepper motor, running smoothly and positioning accurately;
3. The rotation speed is automatically adjusted according to the lens zoom factor, automatic focus, and automatic white balance;
4. Built-in full-screen OSD screen menu. Compatible with multiple control protocols and adjustable baud rate;
5. Vertical 90°, automatic flipping 180° and continuous monitoring

Model number	XLD-MR404NW-100H
Imaging source	1/2.8" Sony CMOS
Signal mode	PAL/NTSC
Clarity	1000 lines
Effective pixels	1280 (horizontal) ⅹ720 (vertical)
Minimum illumination	Color to black and white, color: 0.01Lux, black and white: 0.001Lux
Signal-to-noise ratio	>60dB (enhanced)
Backlight compensation	On/Off
White Balance	Auto
Electronic shutter	PAL:1/50~1/10000 seconds NTSC:1/60~1/12000 seconds
Focal length	5~50mm
Optical zoom	10 times
Focus	Auto/manual, using high-performance DSP to achieve fully digital ultra-high-speed continuous focusing function
Preset	256
Pattern Scan	4 entries, each can record 200 actions
Cruise track	30 preset points can participate in the cruise, and the stay time at the preset points can be set
Other scans	Supports horizontal scanning, two-point area scanning, and random scanning
Rotation range	Unlimited 360° horizontally, 90° vertically, automatic flip
Rotation speed	Horizontal and vertical: minimum 0.01 degrees, maximum 200 degrees/second
Communication	RS-485, PELCO D and PELCO P
Menu functions	Full screen menu
Temperature control system	Built-in temperature control system
Infrared distance	35 meters
Power supply	DC12V/2A
Dome material	Metal cast aluminum casing
Working environment	-20℃～+50℃ (optional temperature control component), <95%RH

Model number	XLD-MR404NW-100H
Imaging source	1/2.8" Sony CMOS
Signal mode	PAL/NTSC
Clarity	1000 lines
Effective pixels	1280 (horizontal) ⅹ720 (vertical)
Minimum illumination	Color to black and white, color: 0.01Lux, black and white: 0.001Lux
Signal-to-noise ratio	>60dB (enhanced)
Backlight compensation	On/Off
White Balance	Auto
Electronic shutter	PAL:1/50~1/10000 seconds NTSC:1/60~1/12000 seconds
Focal length	5~50mm
Optical zoom	10 times
Focus	Auto/manual, using high-performance DSP to achieve fully digital ultra-high-speed continuous focusing function
Preset	256
Pattern Scan	4 entries, each can record 200 actions
Cruise track	30 preset points can participate in the cruise, and the stay time at the preset points can be set
Other scans	Supports horizontal scanning, two-point area scanning, and random scanning
Rotation range	Unlimited 360° horizontally, 90° vertically, automatic flip
Rotation speed	Horizontal and vertical: minimum 0.01 degrees, maximum 200 degrees/second
Communication	RS-485, PELCO D and PELCO P
Menu functions	Full screen menu
Temperature control system	Built-in temperature control system
Infrared distance	35 meters
Power supply	DC12V/2A
Dome material	Metal cast aluminum casing
Working environment	-20℃～+50℃ (optional temperature control component), <95%RH
