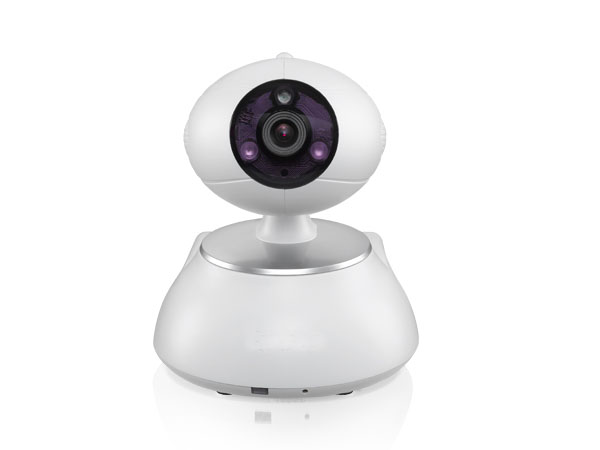

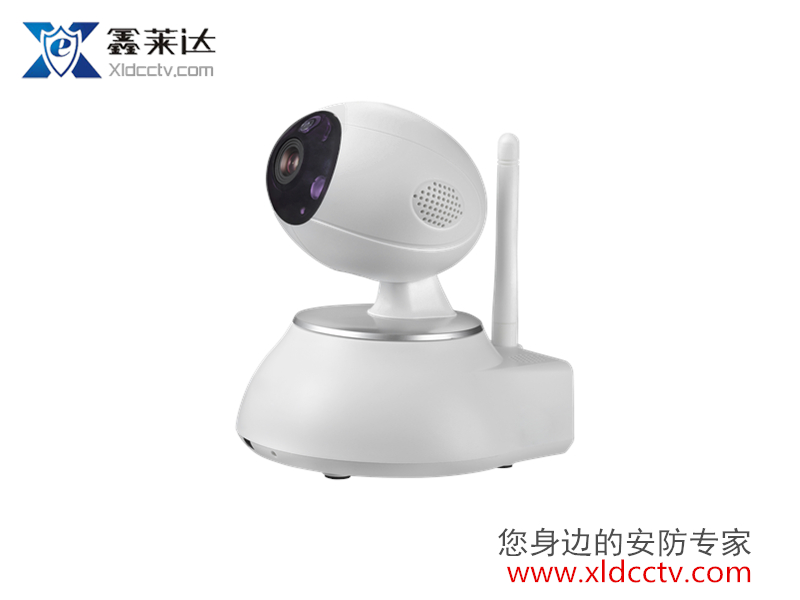

Smart Fire Eye Model A-XLD-HY8001A
Product overview
●Equipped with high-efficiency and high-power infrared light, long service life, irradiation distance up to 5 meters, clearly visible at night
●Easy to install, supports wireless WIFI, can be placed anywhere at home, and can be viewed wherever you go with your mobile phone or PAD computer
●Comes with built-in microphone and speaker, supports two-way voice intercom, making communication with family and friends more convenient

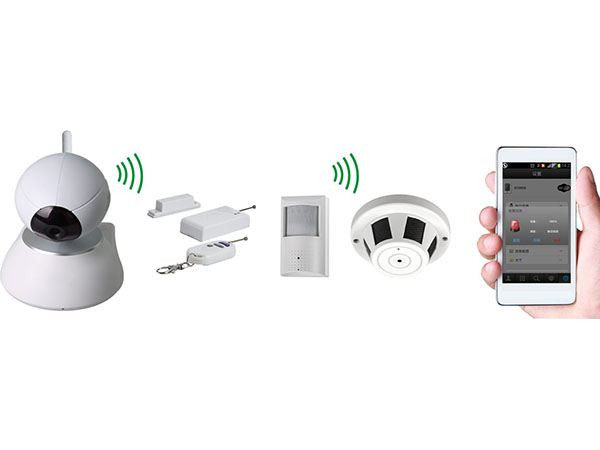

●Alarm push technology: Compatible with various wireless smoke detectors, gas probes, alarm door sensors and other alarms, with a maximum of 8 defense zones and a total of 64 alarm signal connections. When an abnormal intrusion is detected, the on-site alarm information will be automatically pushed to three mobile phones, giving an instant insight into the alarm scene situation and immediate real-time communication between the mobile phone and the camera
●Mobile phone remote video playback technology: local TF card recording of the camera, supports remote recording settings and remote search of videos via smartphone, and selects video files of the corresponding time period for video playback
●180-degree gravity sensing technology: When the camera is suspended from the ceiling, automatic gravity sensing technology is enabled to automatically flip and adjust the inverted image 180 degrees to facilitate debugging and installation
●Plug and play technology: After the camera is connected to the Internet normally, there is no need to apply for a domain name or set up port mapping. Remote monitoring and video calls have never been easier

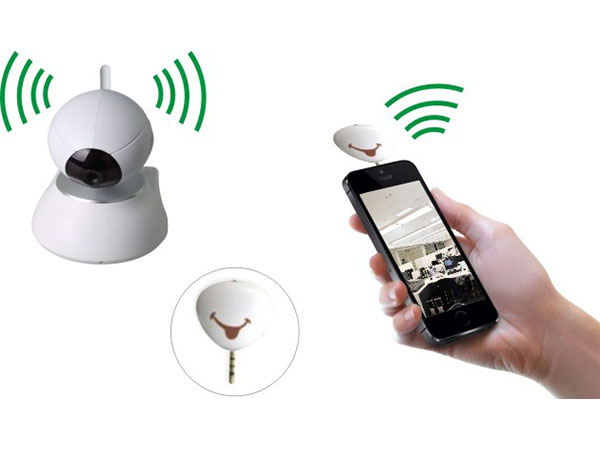

●Infrared remote control wizard technology: Connect the mobile phone to the infrared remote control wizard, and the mobile APP can easily set up the camera WIFI and adjust the camera rotation when there is no network. The remote control wizard can also control on-site household electrical equipment through the mobile phone
●Mobile phone automatically searches camera ID number technology: In the local area network, after the camera is connected, you will be prompted to add the camera function when you log in to the APP on your phone, making the connection extremely convenient
●Network adaptive technology: select the most appropriate code stream for transmission according to network conditions. When the network environment is extremely poor, there will be a prompt on the screen
Silent packet loss technology: In extremely harsh network environments, the system will selectively discard data without sound to ensure the integrity of the audio
●Echo cancellation and noise suppression technology: Unique full-duplex voice intercom, clear and smooth voice 3D Voice engine technology, comprehensively improves voice quality, and has echo cancellation and noise suppression technology
●Globally distributed servers and automatic offloading technology: The servers adopt a distributed design and there is no central server. Abnormal operation of any server will not affect the normal networking of the camera. The camera will automatically select the server with the best connectivity based on network conditions. When a server is overloaded, the server will activate a balancing strategy to offload online cameras.
|
Model |
||
|
Compression technology |
Operating system |
New optimized H.264 Baseline Profile compression algorithm |
|
Video |
Sensor device |
HD 1 million pixel CMOS sensor |
|
Kernel |
The latest HI3518E chip |
|
|
Clarity |
720P high-definition image with a resolution of 1280X720,1 million pixels |
|
|
Resolution |
720P(1280*720),VGA(640*480), QVGA(320*240) |
|
|
Frame rate |
1～30 frames |
|
|
Minimum illumination |
Daytime mode: 1.5 LUX, night vision mode: 0LUX (infrared light on) |
|
|
Infrared distance |
Double filters automatically switch, 15 850nm high-power infrared lights, night vision 5 meters |
|
|
Signal-to-noise ratio |
≥38dB |
|
|
CMOS performance |
Support automatic white balance, automatic gain control, automatic backlight compensation |
|
|
Camera/viewing angle |
||
|
System Features |
System security |
Account and password permission management |
|
Comes with dynamic IP domain name system (free) |
No domain name is required, dynamic IP is supported, no need to apply for peanut shells, completely solving the problem of frequent disconnections, and the connection speed is fast |
|
|
Mobile phone monitoring |
Supports millions of high-definition mobile phone viewing, dedicated Apple mobile phone software, Android software (iOS4.3, Android 2.3 or above) |
|
|
Local storage |
Supports external 32GB MicroSD card, 24-hour recording |
|
|
Plug and play |
Adopting advanced Cloudlink P2P (plug and play) technology, the network penetration is as high as 99%, and it is suitable for various complex networks. The installation only requires three steps: 1. Connect the power supply and plug in the Internet cable; 2. Install the mobile phone software; 3. View the surveillance screen |
|
|
Server cluster |
P2P intelligent server clusters are distributed globally, ensuring the stable and efficient operation of home network rotating cameras |
|
|
Audio |
Coding standards |
G.711A |
|
Audio input |
1 built-in-38dB microphone |
|
|
Audio output |
Built-in speaker (8Ω2Ｗ)` |
|
|
PTZ control |
Yuntai |
Horizontal 355 degrees, vertical 120 degrees. |
|
Video Management |
Recording method |
Manual recording, scheduled recording, alarm recording |
|
Save video |
TF card |
|
|
Network |
Network interface |
10Mbps/100Mbps adaptive/RJ45 interface |
|
Network Protocol |
TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, P2P, etc. |
|
|
Wireless |
WiFi 802.11b/g/n wireless network |
|
|
Alarm |
Alarm input |
Learning wireless sensor alarm input |
|
Motion detection |
Support |
|
|
Alarm detection |
Can be connected to a maximum of 64 wireless alarm sensors, supporting one-click arming/disarming |
|
|
Alarm action 1 |
Speaker alarm, can make calls to 3 mobile phones at the same time |
|
|
Alarm Action 2 |
Take pictures and send them to E-mail |
|
|
System requirements |
System configuration |
iOS4.3, Android version 2.3 or above |
|
Other |
Appearance material |
Cartoon Robot/Engineering Plastics |
|
Usage environment |
Indoor use |
|
|
Power consumption |
DC 5V 2A |
|
|
Operating temperature |
-10~50 °C |
|
|
Operating humidity |
95% RH |
|
|
Size |
110x102x115mm (length×width×height) |
|
|
Weight |
Gross weight: about 350g (note: subject to the actual product) |
|
|
Accessories |
Power adapter CD instruction manual Operating guide Wireless door sensor Remote control |
|
|
Installation method |
Rack mount or lay flat |
|
|
Model |
||
|
Compression technology |
Operating system |
New optimized H.264 Baseline Profile compression algorithm |
|
Video |
Sensor device |
HD 1 million pixel CMOS sensor |
|
Kernel |
The latest HI3518E chip |
|
|
Clarity |
720P high-definition image with a resolution of 1280X720,1 million pixels |
|
|
Resolution |
720P(1280*720),VGA(640*480), QVGA(320*240) |
|
|
Frame rate |
1～30 frames |
|
|
Minimum illumination |
Daytime mode: 1.5 LUX, night vision mode: 0LUX (infrared light on) |
|
|
Infrared distance |
Double filters automatically switch, 15 850nm high-power infrared lights, night vision 5 meters |
|
|
Signal-to-noise ratio |
≥38dB |
|
|
CMOS performance |
Support automatic white balance, automatic gain control, automatic backlight compensation |
|
|
Camera/viewing angle |
||
|
System Features |
System security |
Account and password permission management |
|
Comes with dynamic IP domain name system (free) |
No domain name is required, dynamic IP is supported, no need to apply for peanut shells, completely solving the problem of frequent disconnections, and the connection speed is fast |
|
|
Mobile phone monitoring |
Supports millions of high-definition mobile phone viewing, dedicated Apple mobile phone software, Android software (iOS4.3, Android 2.3 or above) |
|
|
Local storage |
Supports external 32GB MicroSD card, 24-hour recording |
|
|
Plug and play |
Adopting advanced Cloudlink P2P (plug and play) technology, the network penetration is as high as 99%, and it is suitable for various complex networks. The installation only requires three steps: 1. Connect the power supply and plug in the Internet cable; 2. Install the mobile phone software; 3. View the surveillance screen |
|
|
Server cluster |
P2P intelligent server clusters are distributed globally, ensuring the stable and efficient operation of home network rotating cameras |
|
|
Audio |
Coding standards |
G.711A |
|
Audio input |
1 built-in-38dB microphone |
|
|
Audio output |
Built-in speaker (8Ω2Ｗ)` |
|
|
PTZ control |
Yuntai |
Horizontal 355 degrees, vertical 120 degrees. |
|
Video Management |
Recording method |
Manual recording, scheduled recording, alarm recording |
|
Save video |
TF card |
|
|
Network |
Network interface |
10Mbps/100Mbps adaptive/RJ45 interface |
|
Network Protocol |
TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, P2P, etc. |
|
|
Wireless |
WiFi 802.11b/g/n wireless network |
|
|
Alarm |
Alarm input |
Learning wireless sensor alarm input |
|
Motion detection |
Support |
|
|
Alarm detection |
Can be connected to a maximum of 64 wireless alarm sensors, supporting one-click arming/disarming |
|
|
Alarm action 1 |
Speaker alarm, can make calls to 3 mobile phones at the same time |
|
|
Alarm Action 2 |
Take pictures and send them to E-mail |
|
|
System requirements |
System configuration |
iOS4.3, Android version 2.3 or above |
|
Other |
Appearance material |
Cartoon Robot/Engineering Plastics |
|
Usage environment |
Indoor use |
|
|
Power consumption |
DC 5V 2A |
|
|
Operating temperature |
-10~50 °C |
|
|
Operating humidity |
95% RH |
|
|
Size |
110x102x115mm (length×width×height) |
|
|
Weight |
Gross weight: about 350g (note: subject to the actual product) |
|
|
Accessories |
Power adapter CD instruction manual Operating guide Wireless door sensor Remote control |
|
|
Installation method |
Rack mount or lay flat |
|
